Epson

EB-810E

FHD / 5000 Lumens / Laser / Short Throw / Lightscene
RM 18,999.00
* Pleasecontact usto get a better price quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Extreme-short-throw (UST) light scene projector is a type of projector designed to project large images from a very extreme short distance. UST projectors can be placed close to the screen or wall, making them ideal for smaller spaces. These projectors use advanced optics and lens technology to produce a clear and bright image even when placed inches away from the projection surface. Light scene UST projectors are commonly used in retail setups, classrooms, and meeting rooms, event where space is limited.
  • Weight
    g
Brightness
5000
-
Resolutions
FHD
Wired / wireless connectivity
Built-In Wireless
lIGHT SOURCE
Laser
Dimensions
TECHNOLOGY
  • RGB liquid crystal shutter projection system (3LCD)
  • LCD Lens Size: 0.62” (C2fine)

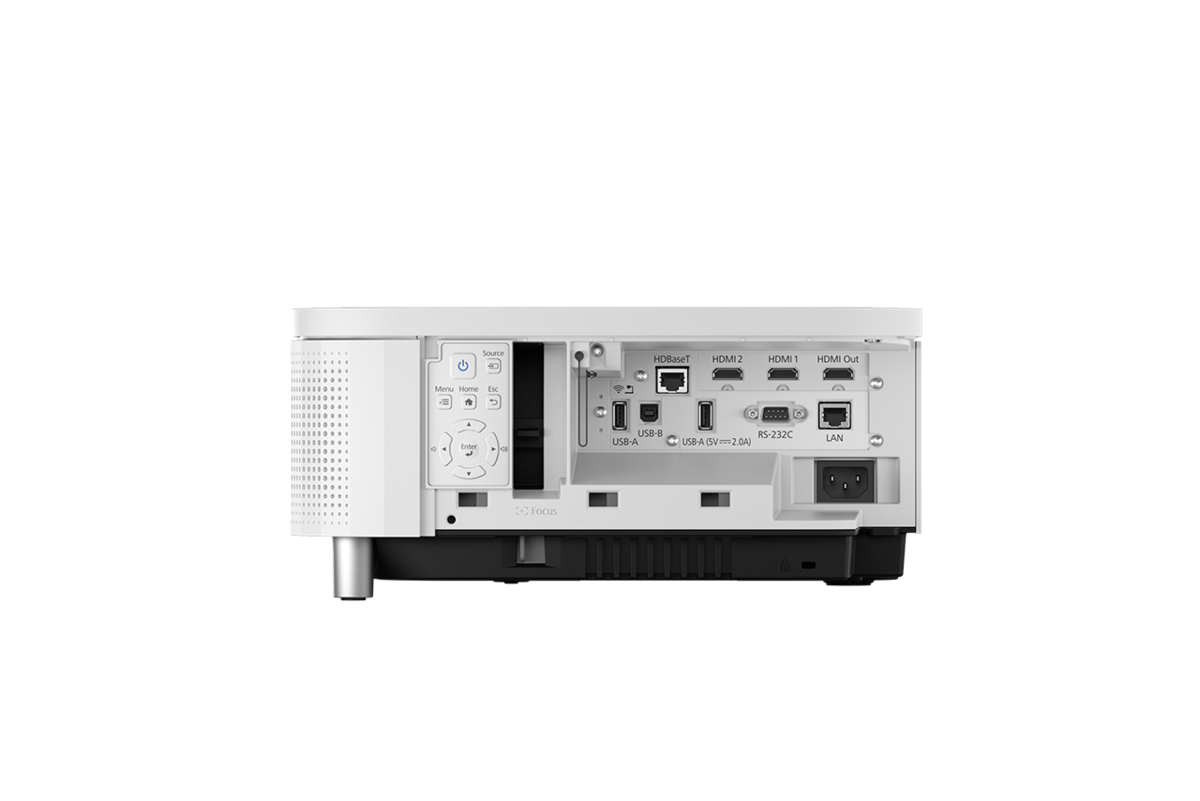

Connectivity
  • Internal Speaker: 8W x 8W (Stereo)
  • Digital Input: HDMI: 2 (HDCP 2.3)
  • HDBaseT: 1 (HDCP 2.3)
  • Digital Output: 1 HDMI (HDCP 2.3)
  • Control I/O RS232C: 1 D-Sub 9pin
  • Wired Lan: RJ45: 1 (100Mbps)
  • USB Type A: 2 (Port 1: PC Free, firmware update, copy OSD settings, ELPAP11, Port 2: PC Free, firmware update, copy OSD settings, 5V/2A power supply)
  • USB Type B: 1 Firmware Update, Copy OSD Settings)
  • Wireless LAN (Optional- ELPAP11)
  • Start-Up Period: Less than 6 seconds (Epson Logo), Warm-up Period: 30 seconds
  • Cool Down Period: Instant Off
  • Direct Power On/Off: Yes
  • Dimension Excluding Feet (W x H x D): 695 x 145 x 341 mm
  • Weight: Approx. 12.5kg
  • Air Filter Type: High Electrostatic Filter
  • Maintenance Cycle: 20,000 hours (Normal)
  • Air Filter Model: ELPAF64
  • Fan Noise (Normal / Eco): 35dB / 26dB
  • Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Projection lens
  • Throw Ratio: 0.16 –0.22:1
  • Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
  • F-Number: 1.80
  • Focal Length: 2.3mm
  • No Optical Zoom / Focus (Manual)
  • Brightness: White / Colour Light Output (Normal / Eco): 5000 / 3500 lm
  • Native Resolution: FHD 1080P (4K Enhancement)
  • Aspect Ratio: 16:9
  • Contrast Ratio: Over 2,500,000:1
  • Light Source: Laser Diode
  • Light Source Life Span (Normal / Extended): 20,000 / 30,000 hours
  • Keystone: Manual Vertical ±3.6°, Manual Horizontal ±9°
  • Projection Orientation: 360°
  • Screen Size (Projected Distance): Tele: 60” to 118” (2.82 to 5.75m) @16:9 / Wide: 80" - 160" (2.78 - 5.78m) @ 16:9 / 75" - 148" (2.8 - 5.74m) @ 16:6
  • Quick Corner: Yes
Compatibility
  • Power cable 4.5M
  • Remote Control with x2 AA Batteries
  • Quick Guide & User Manual (CD)

3 years (36 months) on-site manufacture defects and light source 20,000 hours or 3 years (36 months) whichever comes first
