Epson

EB-L690SU

WUXGA / 6200 Lumens / Semi Short Throw / Laser
RM 23,999.00
* Pleaseto get a better price quote >* Please contact us to get a better price quote >
A laser high-brightness projector with WUXGA resolution and a semi-short zoom lens is an effective, adaptable projection solution for many professional settings, such as large venues, auditoriums, boardrooms, and educational institutions. Its WUXGA resolution delivers detailed images, making it ideal for presentations, multimedia content, and any application that demands image clarity. Laser projectors use laser diodes instead of traditional lamps, offering advantages like longer lifespan, steady brightness over time, faster start-up and shutdown, and minimal maintenance. A higher contrast ratio improves image quality by increasing the distinction between dark and bright areas, which is especially useful for displaying detailed graphics or video. This projector supports flexible mounting positions, a variety of input options, and optional wireless connectivity. Additionally, it enables edge blending with multiple projectors to create a seamless, large-scale image.
  • Weight
    g
Brightness
6200
-
Resolutions
WUXGA
Wired / wireless connectivity
Built- In Wireless
lIGHT SOURCE
Laser Source
Dimensions
TECHNOLOGY
  • RGB liquid crystal shutter projection system (3LCD)
  • LCD Lens Size: 0.67” (C2fine)

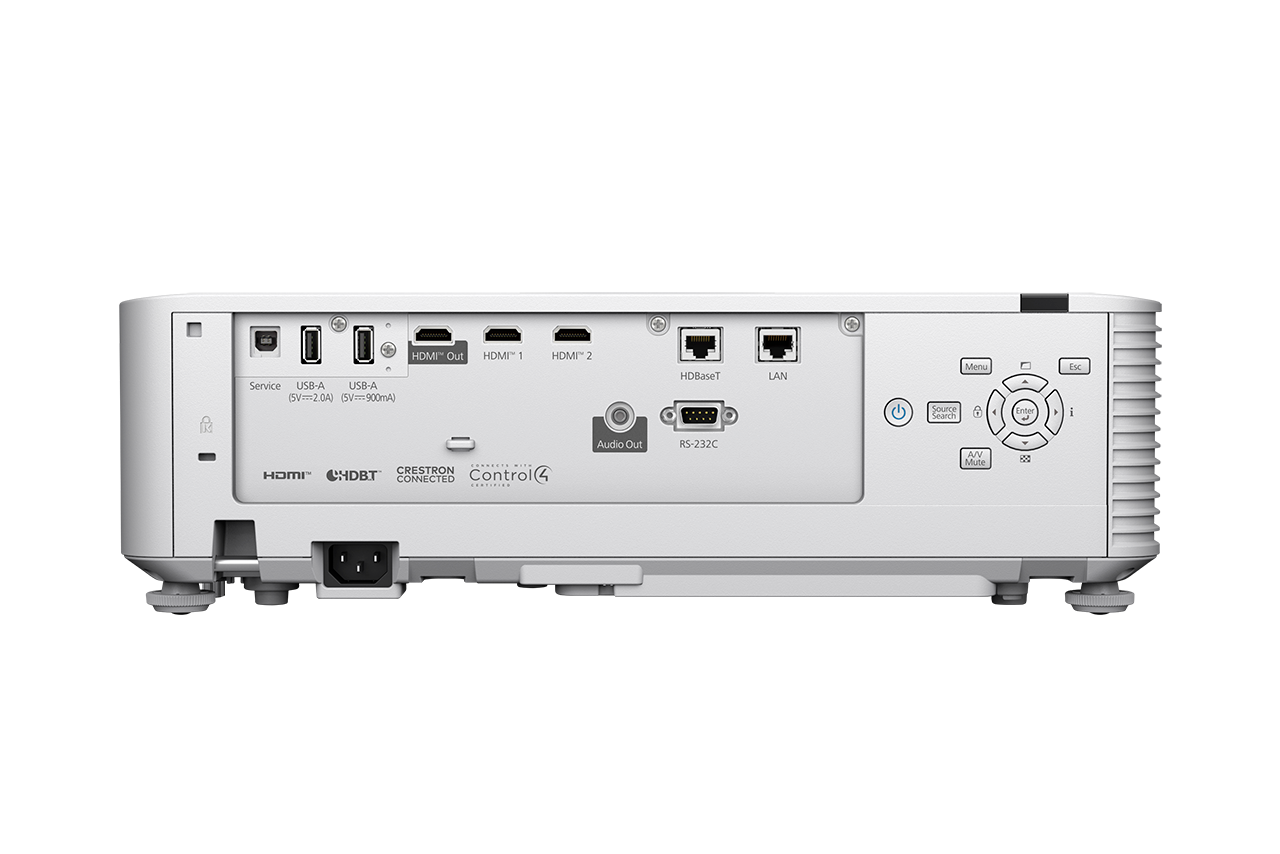

Connectivity
  • Internal Speaker: Monaural: 10W
  • Digital Input: HDMI 2 (HDCP 2.3)
  • Digital Input: HDBaseT 1 (HDCP 2.3)
  • Digital Output: HDMI 1 (HDCP 2.3) corresponds only with HDMI Input 1
  • Audio Output Stereo Mini: 1
  • USB Type A: 2 (Port 1: PC free, Document Camera, 5V/2A power supply, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01 Camera / Port 2: Same as of port one, 5V/0.9A Power Supply)
  • USB Type B: (Service, Copy OSD settings)
  • Control I/O: RS232C: 1
  • Wired Lan: RJ45: 1
  • Wireless LAN: Built-In
  • Miracast R2 support H.264 (AVC)
  • AirPlay 2 support H.264 (AVC), H.265 (HEVC), AVI, VP9, MPEG-2, MPEG-4
  • Start-Up Period: Up to 12 seconds, Warm-up Period: 30 seconds
  • Quick Start-Up: Less than 8 seconds
  • Cool Down Period: Instant Off
  • Direct Power On/Off: Yes
  • Dimension Excluding Feet (W x H x D): 440 x 122 x 304 mm
  • Weight: Approx. 8.9kg
  • Air Filter Type: Electrostatic Filter
  • Maintenance Cycle: 20,000 / 30,000 hours*3
  • Air Filter Model: ELPAF65
  • Fan Noise (Normal / Eco): 34dB / 25dB
  • Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Projection lens
  • Throw Ratio: 0.79 – 1.36:1
  • Zoom Ratio: 1 – 1.7
  • F-Number: 1.7- 2.1
  • Focal Length: 11.6mm - 19.9mm
  • Optical Zoom / Focus / Distortion: Manual
  • Lens Shift: Manual vertical ±50%, horizontal ±20%
  • Brightness: White / Colour Light Output (Normal / Eco): 6200 / 4340 lm
  • Native Resolution: WUXGA (1920 x 1200)
  • Aspect Ratio: 16:10
  • Contrast Ratio: 5,000,000:1
  • Light Source: Laser Diode
  • Light Source Life Span (Normal/Eco): 20,000/30,000 hours
  • Keystone Manual : Vertical ±30°, Horizontal ±30° (Center lens)
  • Projection Orientation: 360°
  • Screen Size (Projected Distance): Tele: 60” to 400” (1.75 to 11.89m) Wide: 60” to 400” (1.02 to 6.95m)
  • Geometric Correction
Compatibility
  • Power cable 3.0M
  • Remote control with x2 AA Batteries
  • Quick Guide & User Manual (CD)

3 years (36 months) carry-in and laser source unlimited or 3 years (36 months) whichever comes first
