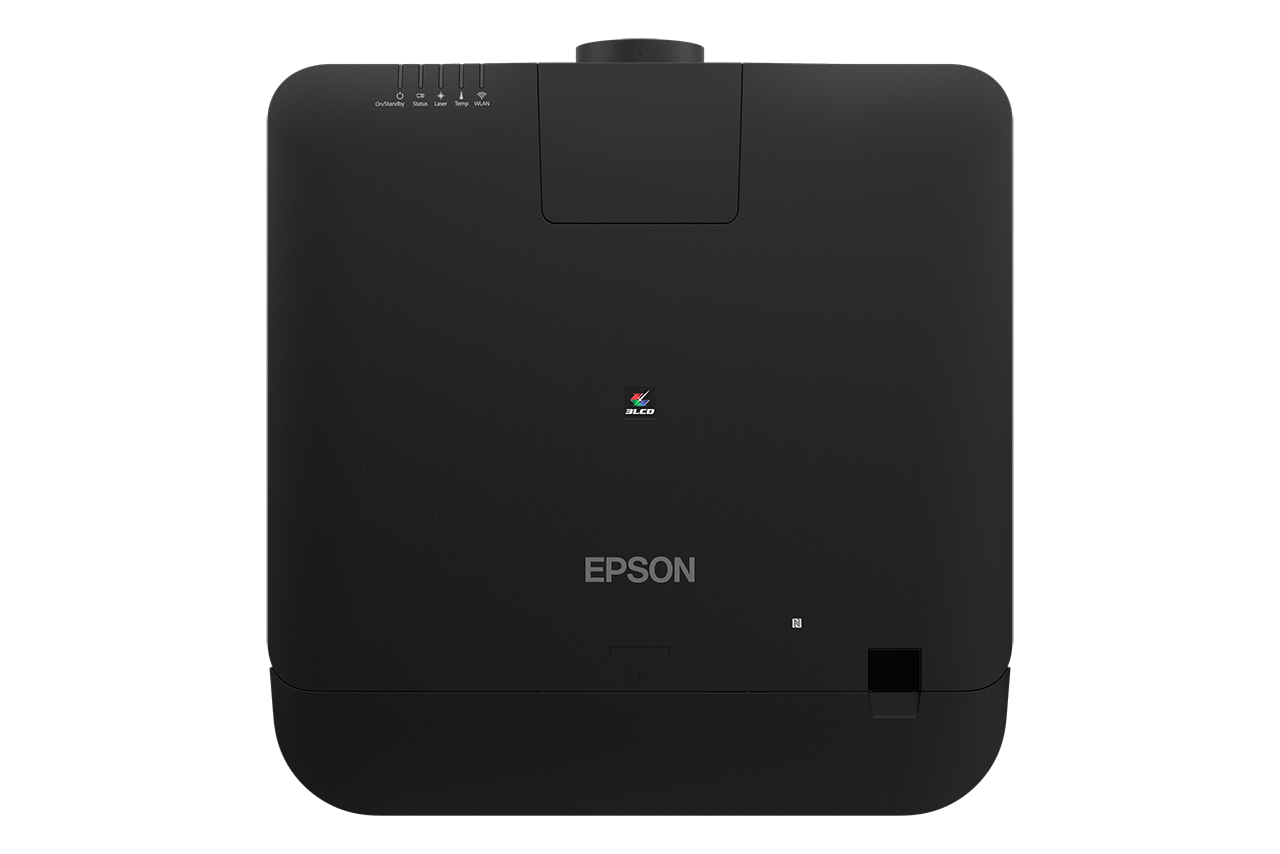

Epson

EB-PQ2216B

FHD with 4K Crystal Motion / 16000 Lumens / Laser / Interchangeable Lens
RM 215,000.00
* Pleaseto get a better price quote >* Please contact us to get a better price quote >
This compact laser projector is equipped with lens shift functionality, enabling flexible display placement without the need for physical adjustment or digital keystone correction. Featuring 4K Crystal Motion Technology, HDR support, and an extensive color gamut, it provides vivid images with brightness levels up to 20,000 lumens to accommodate diverse lighting environments. Lens shift and automatic geometry correction support off-center or ceiling installations while ensuring accurate image alignment. The PQ22xx series incorporates a dust-proof design that eliminates the need for filter replacements. Additionally, the optional ELPEC01 camera simplifies stacking and blending processes, making this projector well-suited for conference rooms and training facilities where precise image positioning is essential.
  • Weight
    g
Features
Specifications
Diagram
What's in the box
Warranty
Accessories
Downloads
Brightness
16000
-
Resolutions
FHD with 4K Crystal Motion
Wired / wireless connectivity
Optional Wireless
lIGHT SOURCE
Laser
Dimensions
TECHNOLOGY
  • RGB liquid crystal shutter projection system (3LCD)
  • LCD Lens Size: 1.04” DMLA (C2fine, 12 bit, OD)
Connectivity
  • Digital Input: HDMI: 2 (HDCP 2.3)
  • Digital Input: HDBaseT: 1 (HDCP 2.3)
  • Digital Input: BNC: 1
  • Digital Output: HDMI: 1 (HDCP 2.3)
  • Digital Output: BNC: 1
  • Audio Output Mini Stereo: 1
  • Remote Stereo Mini: 1
  • Control I/O RS232C: 1
  • Wired Lan: RJ45: 1
  • USB Type A: 2 (Port 1: Wireless LAN, 5V/2A Power supply, SMF1, Firmware Update, Copy OSD Settings, Content Playback. Port 2:  ELPEC01 Camera, 5V/2A Power supply, Content Playback)
  • USB Type B: 1 (Service Port)
  • Wireless LAN: (Optional - ELPAP11)
  • Operation Altitude: Over 1,500m / 4,921ft with high altitude mode: 0 - 3048m (0 - 10,000ft)
  • Start-Up Period: Less then Up to 9 seconds, Warm-up Period: 20 seconds
  • Cool Down Period: Instant Off
  • Direct Power On/Off: Yes
  • Dimension Excluding Feet (W x H x D): 586 x 185 x 492 mm
  • Weight: Approx. 28.8kg
  • Fan Noise (Normal / Eco): 37dB / 34dB / 36DB (with ELPLX02 lens)
  • Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

‍

Projection lens
  • Throw Ratio: 1.52 – 2.47:1 base on Standard Lens ELPLM15 (sold separately)
  • Lens Shift (Powered): Vertical: ± 64%, Horizontal ± 16% (v1.60)
  • Zoom Ratio: 1 – 1.61
  • F-Number: 2.0 - 2.1
  • Focal Length: 14.8 - 17.7mm
  • Zoom / Focus Type: Power
  • Brightness: White / Colour Light Output (Normal / Eco): 16000lm / 11200lm
  • Native Resolution: 1080P with 4K Crystal Motion (1920 x 1080 x4)
  • Signal Input: Max Display 4096 x 2160 (Resizing display)
  • Resolution on SCreen: 4K UHD (3840 x 2160)
  • Aspect Ratio: 16:9
  • Contrast Ratio: Up to 5,000,000:1
  • Light Source: Laser Diode
  • Light Source Life Span (Normal / Extended): 20,000 / 30,000 hours
  • Keystone: Vertical ±45°, Horizontal ±30°
  • Projection Orientation: 360°
  • Screen Size (Projected Distance): Wide 60” to 1000” (1.98 to 34.19m)  / Tele 60" - 1000" (3.24 - 55.28m)
Compatibility
  • Power cable 3.0M
  • Remote Control with x2 AA Batteries
  • Cable cover
  • Lens connector cap
  • Quick Guide & User Manual (CD)

Optional Accessories:-

  • External Camera: ELPEC01
  • Wireless LAN: ELPAP11
  • Ceiling Mount: ELPMB67, ELPMB47, ELPMB48
  • Extension Pole: ELPFP15*
  • HDBaseT Transmitter Box Type: ELPHD01 with HDMI Input up to 100m over CAT5e/6. Power over cable
  • Third Party 4K HDBaseT Transmitter Box Type: AV Link HDMI-SLC with HDMI Input up to 70m / HDMI-ELC with HDMI Input up to 100m over CAT5/5e/6. Power over cable
  • Third Party 4K HDBaseT Transmitter Wall Plate Type: AV Link WVH-EPL with HDMI & VGA/Audio up to 100m over CAT5/5e/6. Power over ethernet / WUH-3MLCU with HDMI & USB C Input up to 40m with USB host extension over CAT6A

Optional Lenses (16:9) / (16:10) / Zoom Rate / Power supply 200-240V Light Output (lm):-

* Different lens automatically set the light source output brightness.

External Camera (EC) ELPEC01 corresponds with lens for easy Blending, Stacking, Color Calibration, Screen Matching and Remote camera access

  • ELPLL08 Ultra Long Zoom Lens 5.09~7.16 / 5.66~7.96 / 1.4 / 15,200 / EC
  • ELPLM11 Long Zoom lens 3.42~5.23 / 3.80~5.81 / 1.5 / 15,200
  • ELPLM10 Middle Zoom Lens 2.34~3.59 / 2.61~3.99 / 1.5 / 15,800
  • ELPLM15 Standard Zoom Lens 1.52~2.47 / 1.69~2.75 / 1.6 / 16,000 / EC
  • ELPLM08 Standard Zoom Lens 1.02~1.64 / 1.14~1.82 / 1.6 / 10,000*
  • ELPLW06 Standard Wide Zoom Lens 1.15~1.57 / 1.27~1.74 / 1.4 / 15,300 / EC
  • ELPLW08 Semi Wide Short Wide Zoom lens 0.83~1.17 / 0.93~1.30 / 1.4 / 15,200 / EC
  • ELPLW05 Short Wide Zoom Lens 0.74~1.04 / 0.82~1.15 / 1.2 / 12,000* / EC
  • ELPLU04 Short Zoom Lens 0.62~0.75 / 0.68~0.83 / 1.2 / 15,100 / EC
  • ELPLU03S Ultra Short Zoom Lens 0.46~0.56 /0.51~0.62 / 1.2 / 13,700 / EC
  • ELPLX02S Ultra Short Fixed Lens 0.34 / 0.37 / No Zoom / 13,500 / EC

‍

3 years (36 months) on-site manufacture defects and light source unlimited hours or 3 years (36 months) whichever comes first
