Epson

EB-W56S

WXGA / 3700 Lumens / Short Throw / Lamp
RM 3,699.00
* Pleaseto get a better price quote >* Please contact us to get a better price quote >
This lightweight, portable short throw projector is designed for convenient use in compact spaces or installations requiring minimal distance. It offers flexible connectivity options, including optional wireless functionality. The device features automatic power-up when a signal cable is connected, simplifying setup. Equipped with a robust 16W speaker, it delivers clear, wide-range audio coverage. Additionally, the projector provides durable performance, allowing for instant shut-off simply by unplugging, ensuring efficient cleanup and ease of use.
  • Weight
    5.00
    g
Brightness
3700
-
Resolutions
WXGA
Wired / wireless connectivity
Optional Wireless
lIGHT SOURCE
Lamp
Dimensions
TECHNOLOGY
  • RGB liquid crystal shutter projection system (3LCD)
  • LCD Lens Size: 0.59” (C2fine)

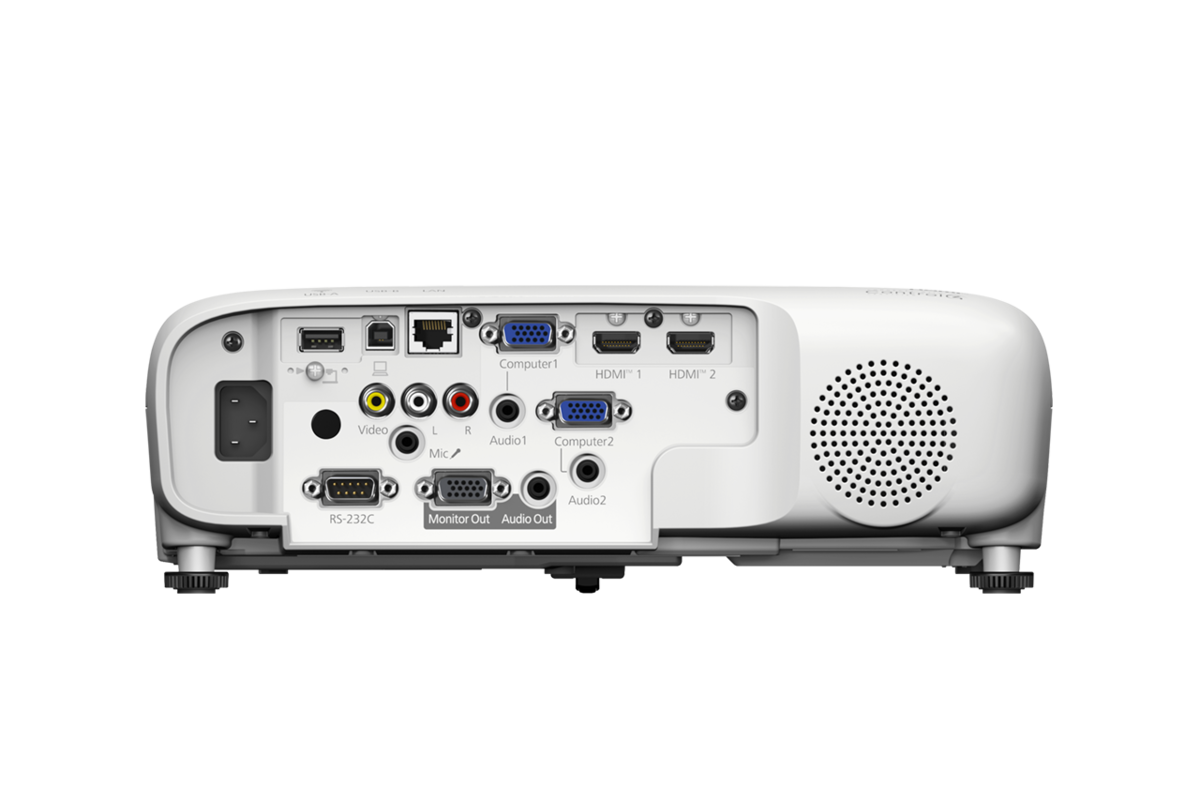

Connectivity
  • Internal Speaker: Monaural: 16W
  • Analog Input: D-Sub 15pin: 2
  • Composite Input RCA: 1
  • Digital Input: HDMI: 2 (HDCP 1.4)
  • Analog Output: D-Sub 15pin: 1
  • Audio Input: 2RCA: 1 / Stereo Mini: 2
  • Audio Output: Stereo Mini: 1
  • Mic Input: Stereo Mini: 1
  • Control RS232C: 1
  • USB Type A: ( Wireless LAN, 5V/2A, PC free, digital camera)
  • USB Type B: (For Firmware Update, Copy OSD Settings, project computer image)
  • Optional Wireless: ELPAP11
  • Start-Up Period: Up to 7 seconds, Warm-up Period: 30 seconds
  • Cool Down Period: Instant Off
  • Direct Power On/Off: Yes
  • Dimension Excluding Feet (W x H x D): 309 x 90 x 282 mm
  • Weight: Approx. 3.1kg
  • Air Filter Type: Electrostatic Filter
  • Maintenance Cycle: 10,000 / 20,000 hours*3
  • Air Filter Model: ELPAF54
  • Fan Noise (Normal / Eco): 38dB / 28dB
  • Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Projection lens
  • Throw Ratio: 0.60 – 0.81:1
  • Zoom Ratio: 1 – 1.35 (Digital Zoom)
  • F-Number: 1.8
  • Focal Length: 7.8mm
  • No Optical Zoom / Focus (Manual)
  • Brightness: White / Colour Light Output (Normal / Eco): 3700 / 2000lm
  • Native Resolution: WXGA (1280 x 800)
  • Aspect Ratio: 16:10
  • Contrast Ratio: 16,000:1
  • Lamp Type / Model: 210W UHE / ELPLP97
  • Lamp Life Span (Normal / Normal / Eco): 6,500 / 10,000 / 17,000 hours
  • Keystone: Auto / Manual Vertical ±15°, Manual Horizontal ±15°
  • Screen Size (Projected Distance): Tele: 37” to 222” (0.64 to 3.94m) Wide: 50” to 300” (0.64 to 3.94m)
  • Geometric Correction
Compatibility
  • Power cable 1.8M
  • HDMI cable 1.8M
  • Remote Control with x2 AA Batteries
  • Quick Guide & User Manual (CD)

2 years (24 months) carry-in and lamp 2 years (24 months) or 1,000 hours whichever comes first
